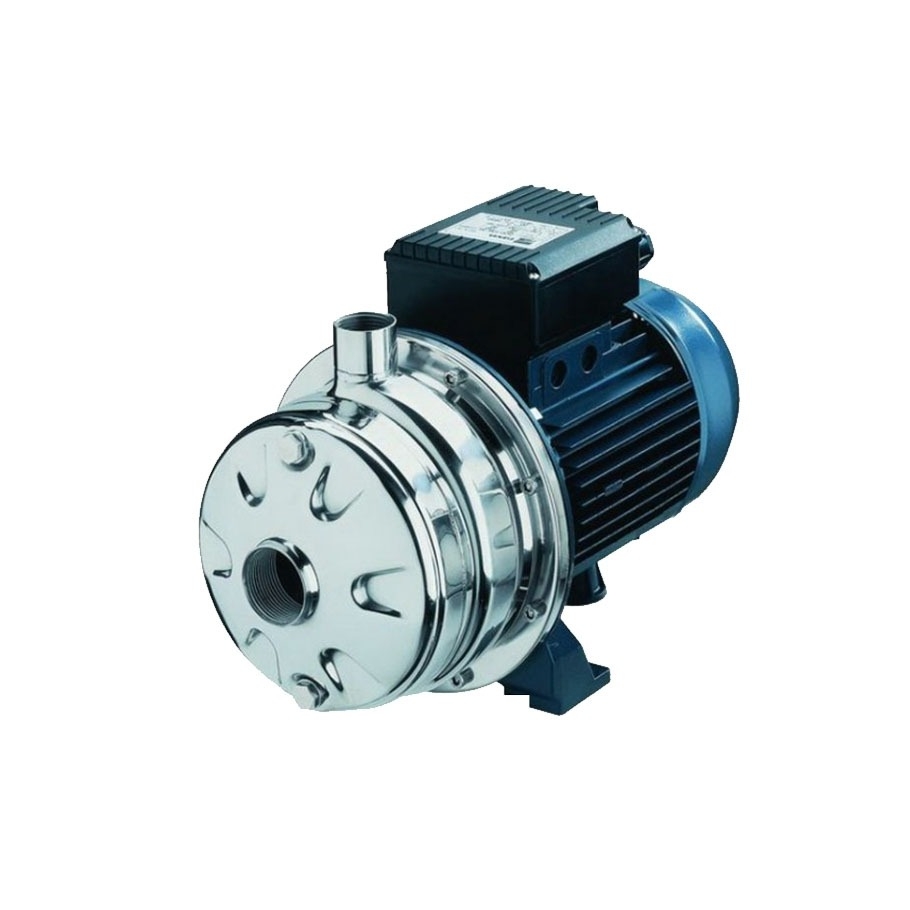

ปั๊มหอยโข่ง EBARA ชนิดใบพัดคู่ รุ่น : 2CDX : EBARA

คำอธิบาย

ปั๊มหอยโข่ง EBARA ชนิดใบพัดคู่ รุ่น : 2CDX : EBARA

Liquid Handled

Type of liquid

Temperature

Clean water

[°C]         min. -5

max. +90  for standard version

max. +110 for H – HS – HW – HSW version

max. +120 for E, Q1AEGG, VAEGG, U3U3EGG, Q1U3EGG, U3CEGG

Maximum working pressure [MPa]     0.8

Construction

Impeller

Closed centrifugal type (Twin)

Shaft seal type       Mechanical seal

Bearing   Sealed ball bearing

Pipe Connection

Suction   [inch]      from G1”¼ to G1”½ (2CDX 200)        UNI ISO 228-1

Discharge               [inch]      G1”         UNI ISO 228-1

Material

Casing    EN 1.4301 (AISI 304) – (AISI 316L only for “L” version)

Impeller EN 1.4301 (AISI 304) – (AISI 316L only for “L” version)

Casing cover          EN 1.4301 (AISI 304) – (AISI 316L only for “L” version)

Shaft seal               Ceramic/Carbon/NBR  (for version see page 302)

Shaft       AISI 304 / AISI 316L (Wet extension)

Bracket   Aluminium (up to 1.5 kW included) Cast iron (2.2 kW and above )

Diffuser  AISI 304 / AISI 316L

Applicable standard of test  ISO 9906:2012 – Grade 3B
